Linear Guideway

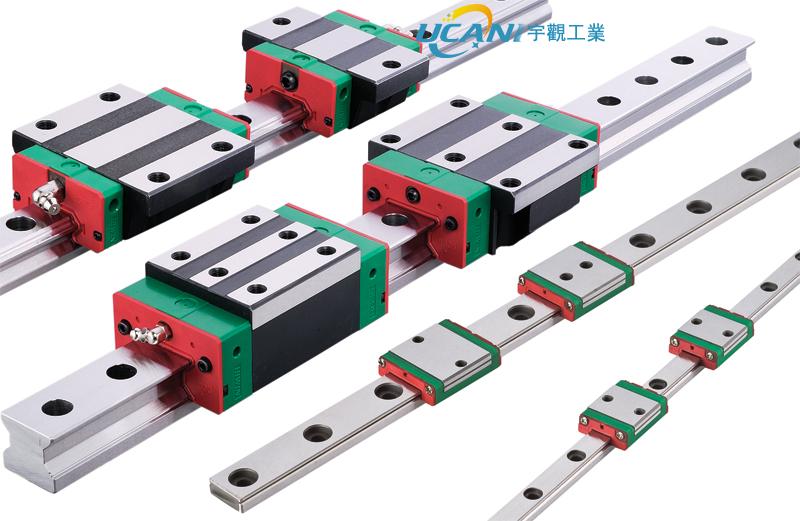

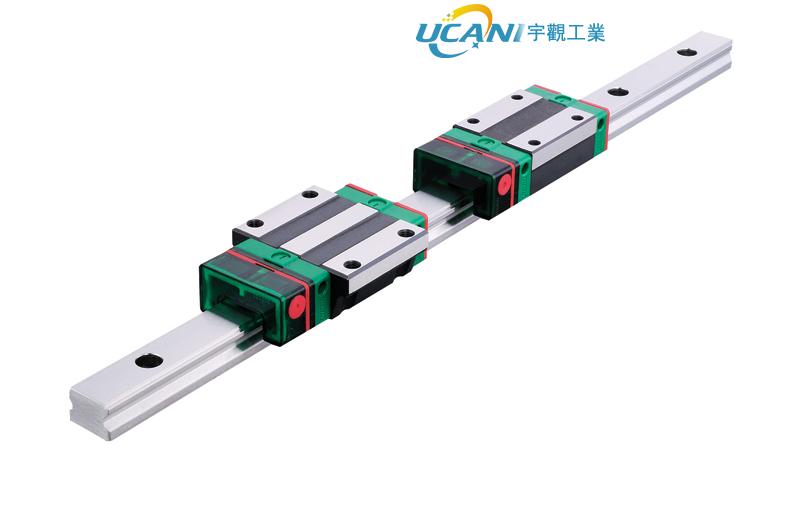

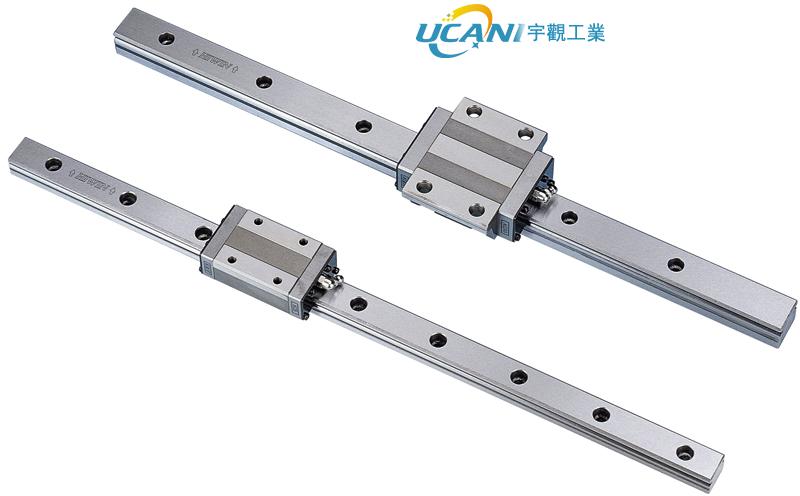

HIWIN EG Series Low Profile Ball Type Linear Guideway

Model	Dimensions of Assembly(mm)			Dimensions of Block(mm)													Dimensions of Rail(mm)							Mounting Bolt for Rail	Basic Dynamic Load Rating	Basic Static Load Rating	Static Rated Moment			Weight
Model	H	H₁	N	W	B	B₁	C	L₁	L	K₁	K₂	G	Mxl	T	H₂	H₃	W_R	H_R	D	h	d	P	E	(mm)	C(kN)	C₀(kN)	M_R(kN-m)	M_P(kN-m)	M_Y(kN-m)	Block(kg)	Rail(kg/m)
EGH15SA	24	4.5	9.5	34	26	4	-	23.1	40.1	14.8	3.5	5.7	M4x6	6	5.5	6	15	12.5	6	4.5	3.5	60	20	M3x16	5.35	9.4	0.08	0.04	0.04	0.09	1.25
EGH15CA	24	4.5	9.5	34	26	4	26	39.8	56.8	10.15	3.5	5.7	M4x6	6	5.5	6	15	12.5	6	4.5	3.5	60	20	M3x16	7.83	16.19	0.13	0.1	0.1	0.15	1.25
EGH20SA	28	6	11	42	32	5	-	29	50	18.75	4.15	12	M5x7	7.5	6	6	20	15.5	9.5	8.5	6	60	20	M5x16	7.23	12.74	0.13	0.06	0.06	0.15	2.08
EGH20CA	28	6	11	42	32	5	32	48.1	69.1	12.3	4.15	12	M5x7	7.5	6	6	20	15.5	9.5	8.5	6	60	20	M5x16	10.31	21.13	0.22	0.16	0.16	0.24	2.08
EGH25SA	33	7	12.5	48	35	6.5	-	35.5	59.1	21.9	4.55	12	M6x9	8	8	8	23	18	11	9	7	60	20	M6x20	11.4	19.5	0.23	0.12	0.12	0.25	2.67
EGH25CA	33	7	12.5	48	35	6.5	35	59	82.6	16.15	4.55	12	M6x9	8	8	8	23	18	11	9	7	60	20	M6x20	16.27	32.4	0.38	0.32	0.32	0.41	2.67
EGH30SA	42	10	16	60	40	10	-	41.5	69.5	26.75	6	12	M8x12	9	8	9	28	23	11	9	7	80	20	M6x25	16.42	28.1	0.4	0.21	0.21	0.45	4.35
EGH30CA	42	10	16	60	40	10	40	70.1	98.1	21.05	6	12	M8x12	9	8	9	28	23	11	9	7	80	20	M6x25	23.7	47.46	0.68	0.55	0.55	0.76	4.35
EGH35SA	48	11	18	70	50	10	-	45	75	28.5	7	12	M8x12	10	8.5	8.5	34	27.5	14	12	9	80	20	M8x25	22.66	37.38	0.56	0.31	0.31	0.74	6.14
EGH35CA	48	11	18	70	50	10	50	78	108	20	7	12	M8x12	10	8.5	8.5	34	27.5	14	12	9	80	20	M8x25	33.35	64.84	0.98	0.69	0.69	1.1	6.14

Model	Dimensions of Assembly(mm)			Dimensions of Block(mm)														Dimensions of Rail(mm)							Mounting Bolt for Rail	Basic Dynamic Load Rating	Basic Static Load Rating	Static Rated Moment			Weight
Model	H	H₁	N	W	B	B₁	C	L₁	L	K₁	K₂	G	M	T	T₁	H₂	H₃	W_R	H_R	D	h	d	P	E	(mm)	C(kN)	C₀(kN)	M_R(kN-m)	M_P(kN-m)	M_Y(kN-m)	Block(kg)	Rail(kg/m)
EGW15SA	24	4.5	18.5	52	41	5.5	-	23.1	40.1	14.8	3.5	5.7	M5	5	7	5.5	6	15	12.5	6	4.5	3.5	60	20	M3x16	5.35	9.4	0.08	0.04	0.04	0.12	1.25
EGW15CA	24	4.5	18.5	52	41	5.5	26	39.8	56.8	10.15	3.5	5.7	M5	5	7	5.5	6	15	12.5	6	4.5	3.5	60	20	M3x16	7.83	16.19	0.13	0.1	0.1	0.21	1.25
EGW20SA	28	6	19.5	59	49	5	-	29	50	18.75	4.15	12	M6	7	9	6	6	20	15.5	9.5	8.5	6	60	20	M5x16	7.23	12.74	0.13	0.06	0.06	0.19	2.08
EGW20CA	28	6	19.5	59	49	5	32	48.1	69.1	12.3	4.15	12	M6	7	9	6	6	20	15.5	9.5	8.5	6	60	20	M5x16	10.31	21.13	0.22	0.16	0.16	0.32	2.08
EGW25SA	33	7	25	73	60	6.5	-	35.5	59.1	21.9	4.55	12	M8	7.5	10	8	8	23	18	11	9	7	60	20	M6x20	11.4	19.5	0.23	0.12	0.12	0.35	2.67
EGW25CA	33	7	25	73	60	6.5	35	59	82.6	16.15	4.55	12	M8	7.5	10	8	8	23	18	11	9	7	60	20	M6x20	16.27	32.4	0.38	0.32	0.32	0.59	2.67
EGW30SA	42	10	31	90	72	9	-	41.5	69.5	26.75	6	12	M10	7	10	8	9	28	23	11	9	7	80	20	M6x25	16.42	28.1	0.4	0.21	0.21	0.62	4.35
EGW30CA	42	10	31	90	72	9	40	70.1
