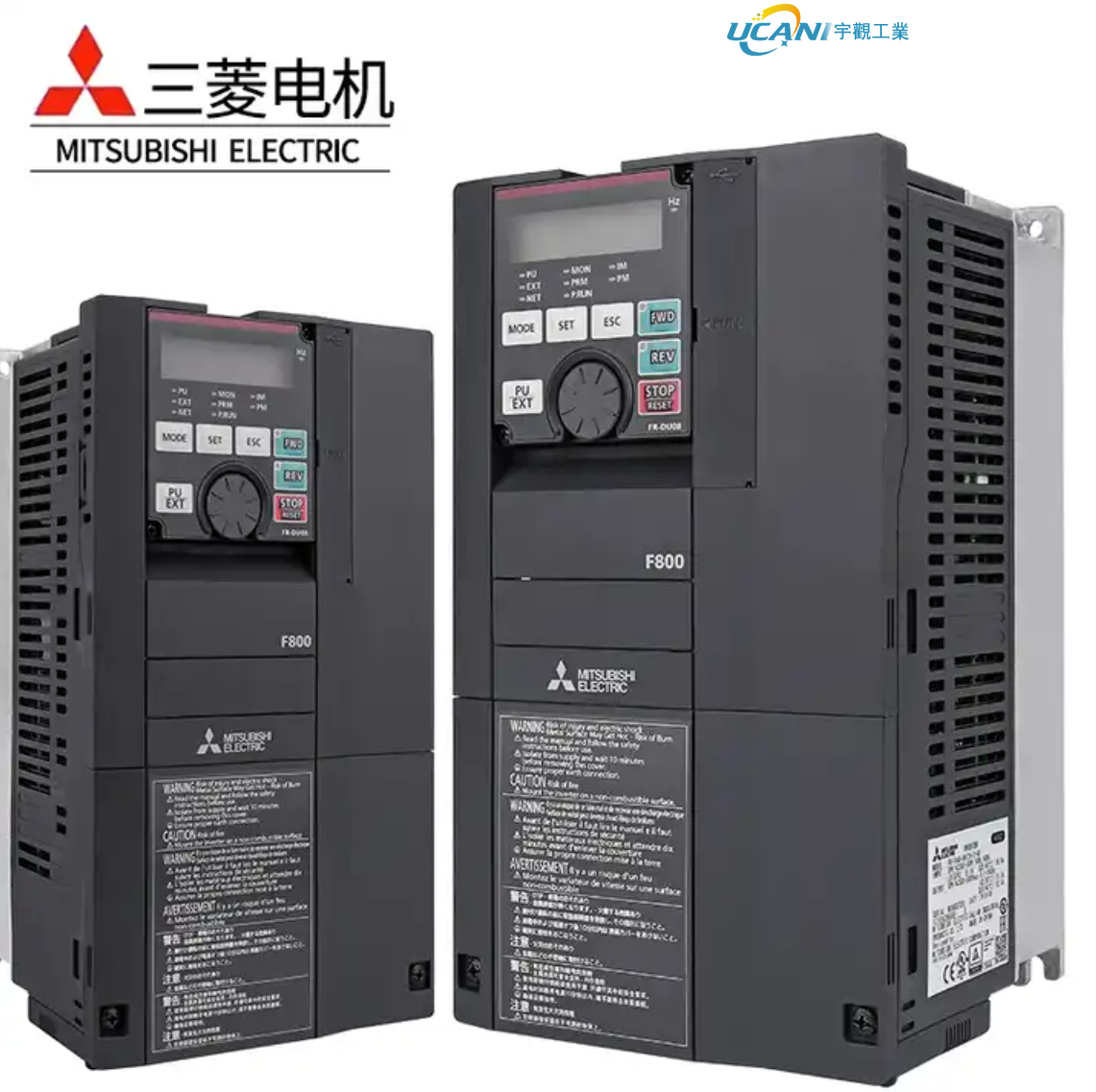

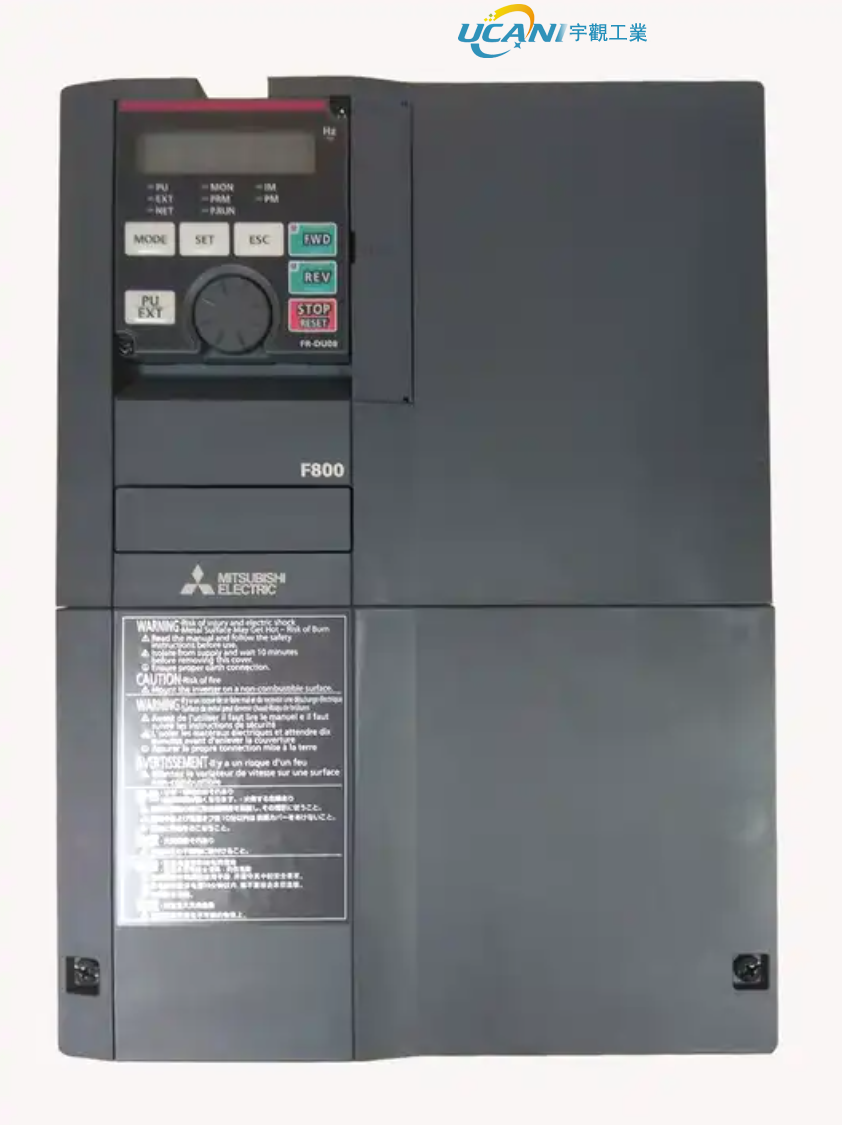

FR-F Series

We provide solutions to your energy saving needs, not to mention the leading drive performance such as its energy saving functions, low speed and high torque driving, the selectable multiple rating between two types, LD (light duty) and SLD (superlight duty) depending on the load of the fan/pump, and equipping the 24 VDC control power input as standard.

Standard model

Separated converter type

• *1 : Applicable for the FR-F846-03610(160K) or lower.
• *2 : Models can be alternatively indicated with the inverter rated current (SLD rating).
• *3 : Specification differs by the type as follows.

Type	Monitor output	Initial setting
		Built-in EMC filter	Control logic	Rated frequency	Pr.19 Base frequency voltage	Pr.570 Multiple rating setting
FM (terminal FM equipped model)	Terminal FM (pulse train output) Terminal AM (analog voltage output (0 to ±10 VDC))	OFF	Sink logic	60 Hz	9999 (same as the power supply voltage)	1 (LD rating)
CA (terminal CA equipped model)	Terminal CA (analog current output (0 to 20 mADC)) Terminal AM (analog voltage output (0 to ±10 VDC))	ON	Source logic	50 Hz	8888 (95% of the power supply voltage)	0 (SLD rating)

• *4 : Applicable for the standard model only.
• *5 : Available for the IP55 compatible model, the FR-F820-00340(7.5K) or higher, and the FR-F840-00170(7.5K) or higher.
• *6 : Applicable for the IP55 compatible model only.
• *7 : Always install the converter unit (FR-CC2). (Not required when a high power factor converter (FR-HC2) is used)For the FR-F820-03160(75K) or higher, and the FR-F840-01800(75K) or higher, always connect a DC reactor (FR-HEL), which is available as an option.
  Select a DC reactor according to the applied motor capacity.
• *8 : Always install the converter unit (FR-CC2). (Not required when a high power factor converter (FR-HC2) is used)

Converter unit

Premium high-efficiency IPM motor

55 kW or lower

• *1: The motor can also be used for applications which required the rated speed of 1800 r/min.
• *2: The outdoor type and class B are semi-standard models.

75 kW or higher

• ● The motor can be used for applications which required the rated speed of 1500 r/min and 1800 r/min.
• ● For dedicated motors such as the outdoor type, the long-axis type, the flange type, the waterproof outdoor type,
  and the corrosion proof type, contact your sales representative.

Note:

• ● The IPM motor MM-EFS/MM-THE4 series cannot be driven by the commercial power supply.
• ● For IPM motors, the wiring length is 100 m maximum.
• ● Only one IPM motor can be connected to an inverter.
• ● For belt drive application of the 11 kW or higher MM-EFS series IPM motor with the 1500 r/min specification, use a dedicated belt drive motor.
  The 11 kW or higher motors with 3000 r/min specification are designed for a direct connection only.

Parameter copy with a USB memory device

A USB host connecter (A type), which allows external device connections, has been added.
Parameters can be copied to commercial USB memory devices.

Easy setup with FR Configurator2

● With the sense of unity with other Mitsubishi FA products with common MELSOFT design and operability, the software is easy to use.

● Easy plug-and-play connection is available to the USB terminal equipped as standard.

● A free trial version, which contains start-up functions, is available. It can be downloaded at Mitsubishi Electric FA Global Website.

Easy wiring to the control circuit

Spring clamp terminals have been adopted for control circuit terminals.
Wires can be protected against loosening under vibrations during transportation of the inverter. Ten additional terminals are used as compared to the FR-F700(P) series.
Round crimping terminals can also be used by employing a control terminal option (FR-A8TR).

Easy-to-follow Display Improves the Operability

Easy operation with GOT

Easy-to-follow parameter configuration

With the parameter setting mode selection of the operation panel, the group parameter mode can be selected to provide intuitive and simple parameter settings. (The conventional parameter setting mode is selected by default.)

Easy-to-read operation panel

To Aid with Maintenance

Reduced wiring check time

Maintenance and control of multiple inverters (Option)

Serial number reading is possible using the optional LCD operation panel (FR-LU08) or the inverter setup software (FR Configurator2). Administration of different inverters has become much more simple.
