AB Allen-Bradly

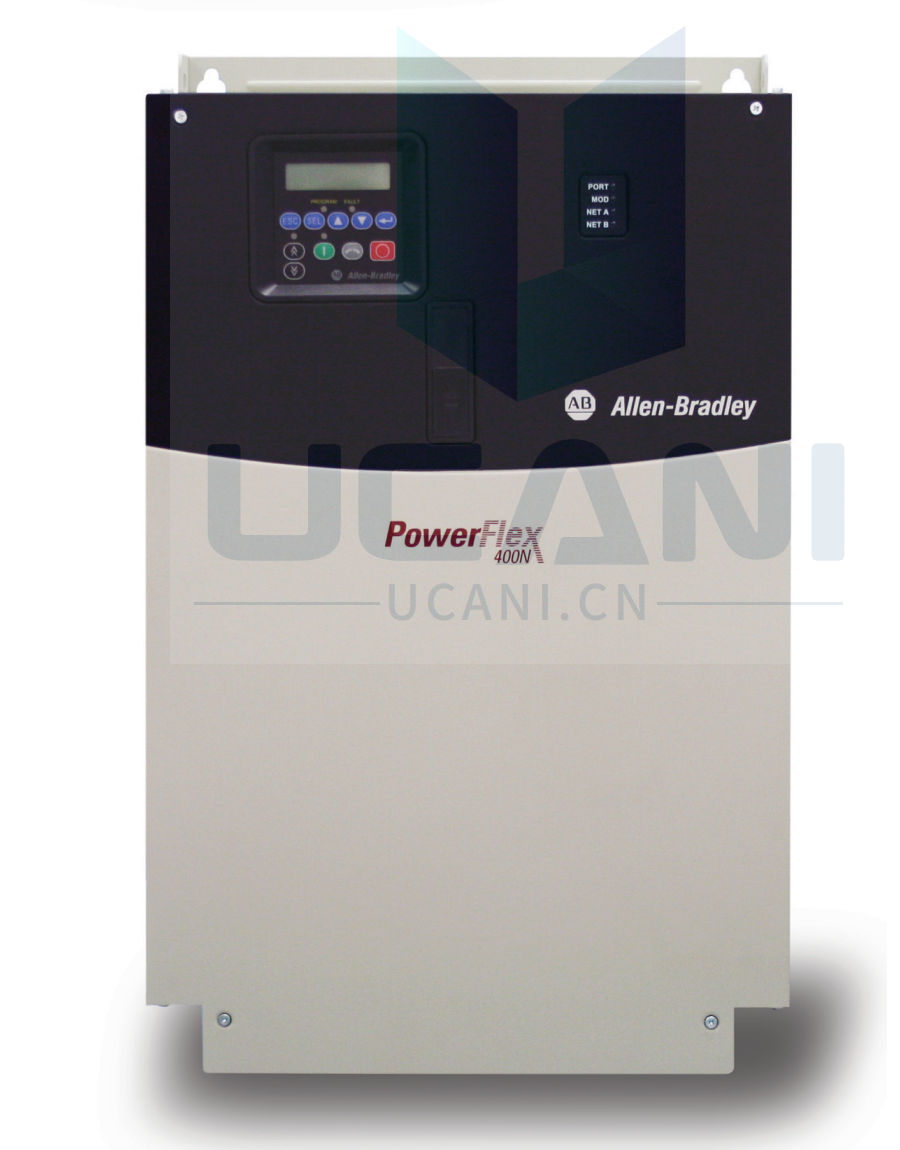

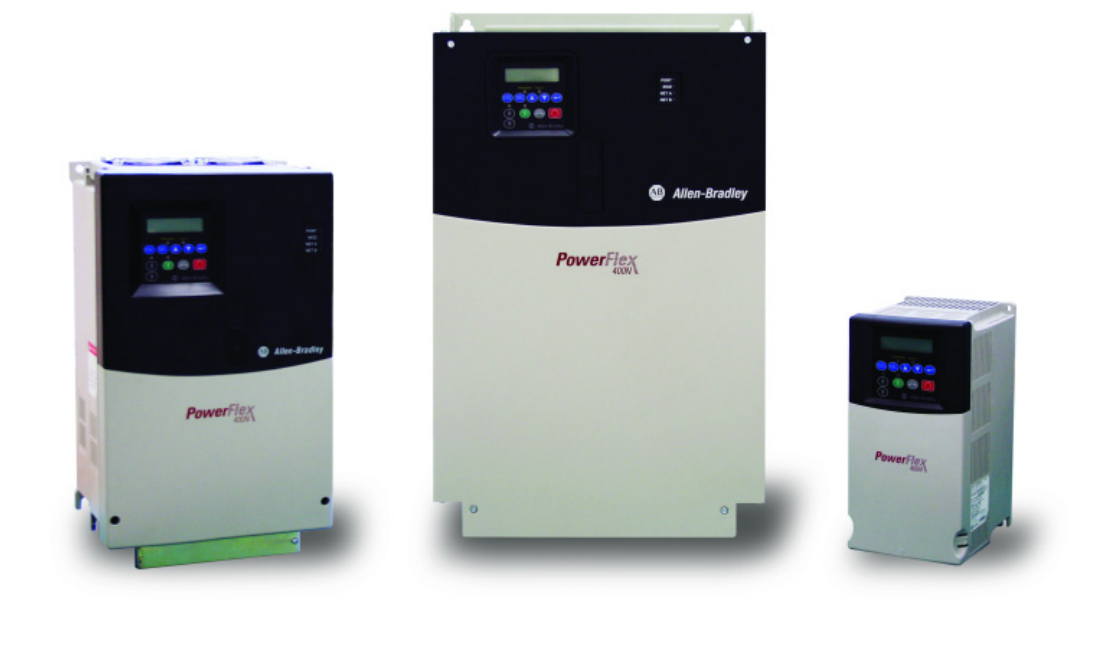

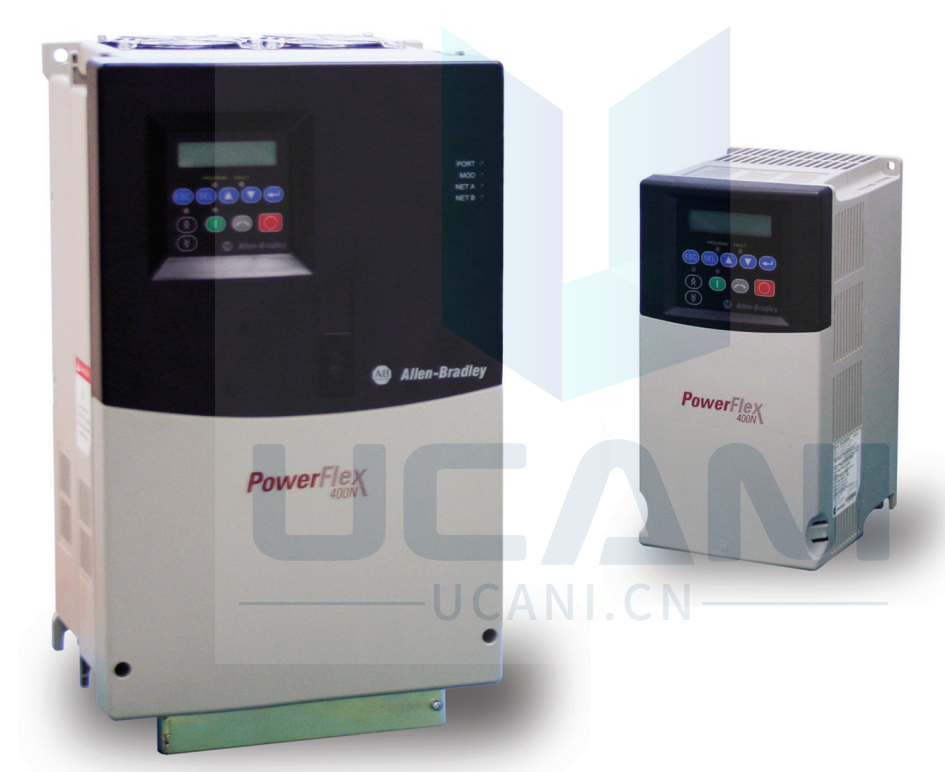

PowerFlex 400N

Product description: AC Drives PowerFlex 400N Adjustable Frequency AC Drives for General Industrial Applications PowerFlex 400 AC Drives Our PowerFlex® 400 AC Drives are optimized for control of commercial and
INQUIRY

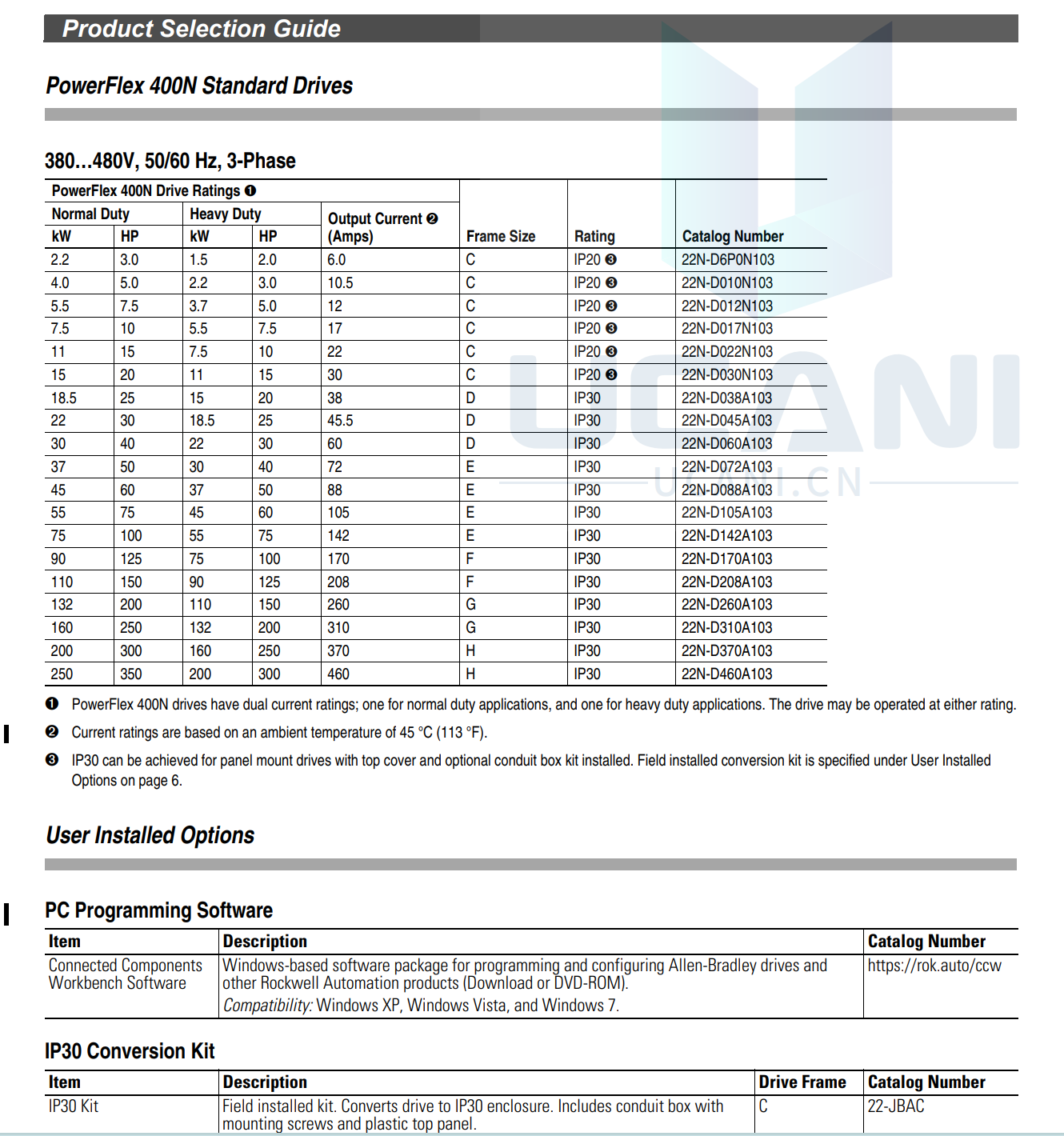

Power ratings:
- 200…240V: 2.2…37 kW / 3…50 Hp / 12…145 A
- 380…480V: 2.2…250 kW / 3…350 Hp / 6…460 A
NEMA/UL Type 1, 12, 3R, and 4 enclosures
Flange-mount and panel-mount options
V/Hz control, slip compensation, and PID control
Internal RS-485, Common Industrial Protocol (CIP), embedded Modbus® RTU, Metasys® N2, and Apogee® FLN P1-plant floor network protocols
Supports Drive Serial Interface (DSI) communication modules
Drive overload protection, flying start, purge and damper input, hand/off/auto, and sleep/wake features
Packaged drive options include disconnect and contactor bypass packages
Available line reactor option
Configuration and programming via integral keypad, remote keypad, or DriveTools™ SP software
Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
