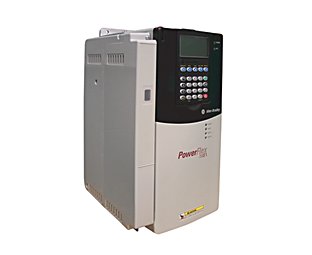

PowerFlex® 700S AC Drives

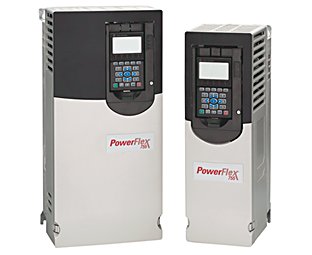

Product description: PowerFlex® 700S AC Drives PowerFlex 755 AC Drives
INQUIRY

Rockwell Automation announces that as of June 30, 2020, our PowerFlex 700S high power drives are discontinued and no longer available for sale. This announcement only pertains to drives 200 Hp/132 kW and greater @ 400/480V AC or 150 Hp/160 kW and greater @600/690V AC (frame sizes 9…14). The PowerFlex 755 drive family includes a broad range of power ratings that provides ease of use, application flexibility and high performance.

To support your transition, we recommend that you migrate to the PowerFlex 755 AC Drives. For more information, see the PowerFlex 700S High Power Drives to PowerFlex 755 Drives Migration Profile

Overview

Our PowerFlex® 700S AC Drives offer optimized integration for the most demanding stand-alone, coordinated drive control and drive system applications. The PowerFlex 700S AC drive with the DriveLogix™ option combines the powerful performance and flexible control of PowerFlex AC drives with a high-performance Logix engine to produce a highly functional, cost-effective drive and control solution.

Power ratings
- 200…240V: 0.37…66 kW / 0.5…100 Hp / 2.2…260 A
- 380…480V: 0.37…132 kW / 0.5…200 Hp / 1.1…260 A
- 500…600V: 1…150 Hp / 1.7…144 A
- 690V: 45…132 kW / 52…142 A
IP20 NEMA/UL Type 1
V/Hz control, Vector Control with FORCE™ Technology, and Permanent Magnet Motor Control
Zero Stacking™ Drives or side-by-side mounting conserves panel space and reduces installation costs
Pull-apart control terminal blocks allow for easy wiring and quick disconnect
Optimized global voltage settings allow quick setup anywhere in the world
Common bus capability
SynchLink™ fiber optic link for a high level of drive coordination and data transfer
AC or DC common bus configurations for stand-alone or multiple drive solutions
User function library provides logic functions without a PLC
Optional DriveLogix™ embedded control for application programmability and control of auxiliary functions
Configuration and programming via optional integral LCD keypad, remote keypad, or software
Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time

Available Embedded Safety Options

Safe Torque-Off option is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. All safety options are available as a kit for user installation
